Single Suction Cup Mount

The PIVOT Single Suction Cup Mount delivers secure, reliable device mounting wherever you need it. Built with an aviation-grade locking suction system, it creates a strong, stable hold on any non-porous surface - designed to perform under vibration, movement, and real-world conditions.

For more demanding applications, upgrade to the PPK-XP Mounting Plate. Built from glass fiber reinforced, UV-resistant polycarbonate, it delivers higher strength, improved structural integrity, and long-term resistance to heat and environmental stress, designed to perform where standard materials break down. The PPK-XP Mounting Plate is backed by a lifetime warranty.

Lab tested to withstand up to 20g forces, this mount is engineered for environments where failure is not an option. Fine-tuned adjustability allows you to position your device exactly where you need it for optimal visibility and access.

With PIVOT’s Universal Mounting System, it connects instantly to any PIVOT case - past, present, and future - giving you a consistent, reliable platform across every device.

Where it Works

• Flight decks and cockpit windows
• Vehicle dashboards and windshields
• Workstations and command centers
• Field operations and mobile environments

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here.

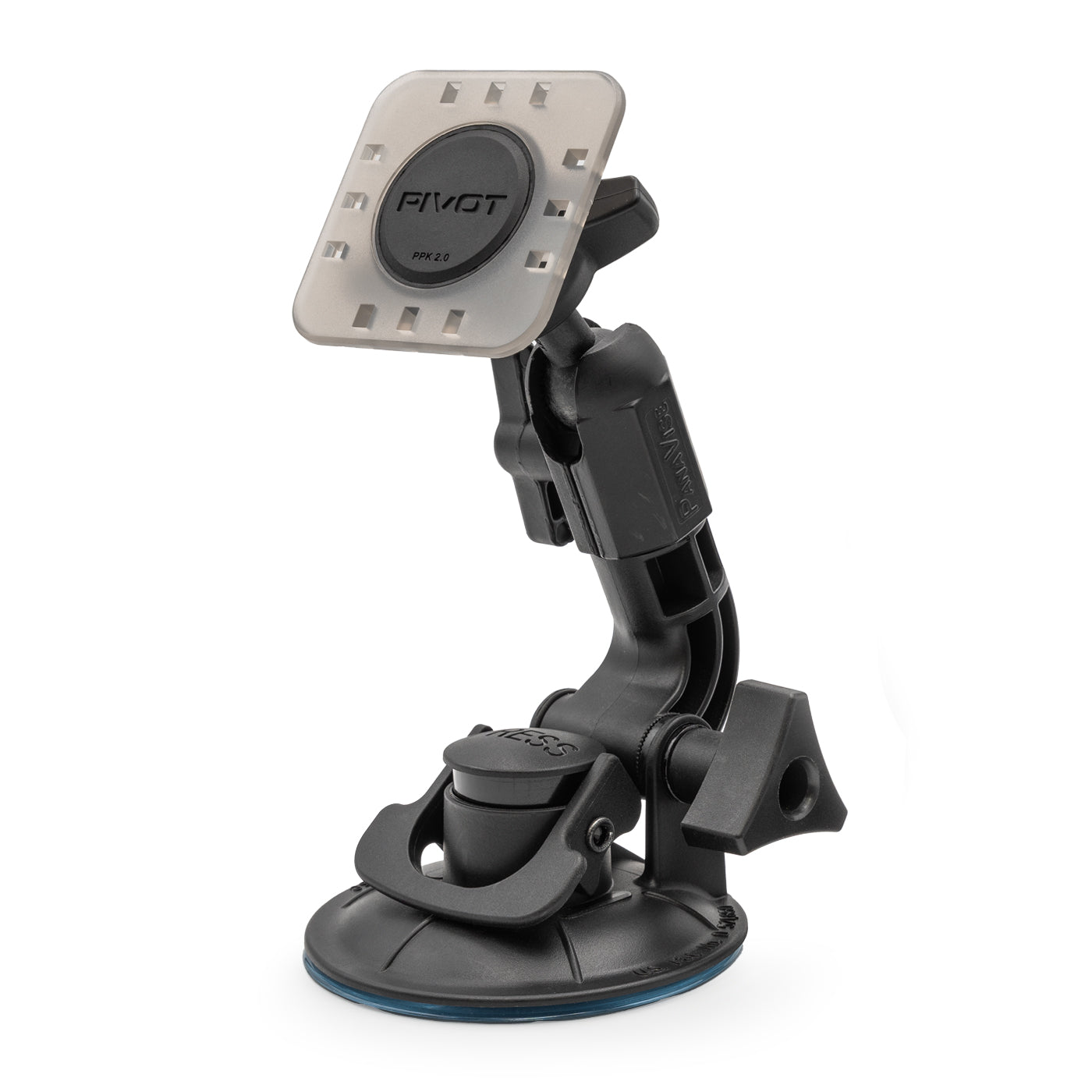

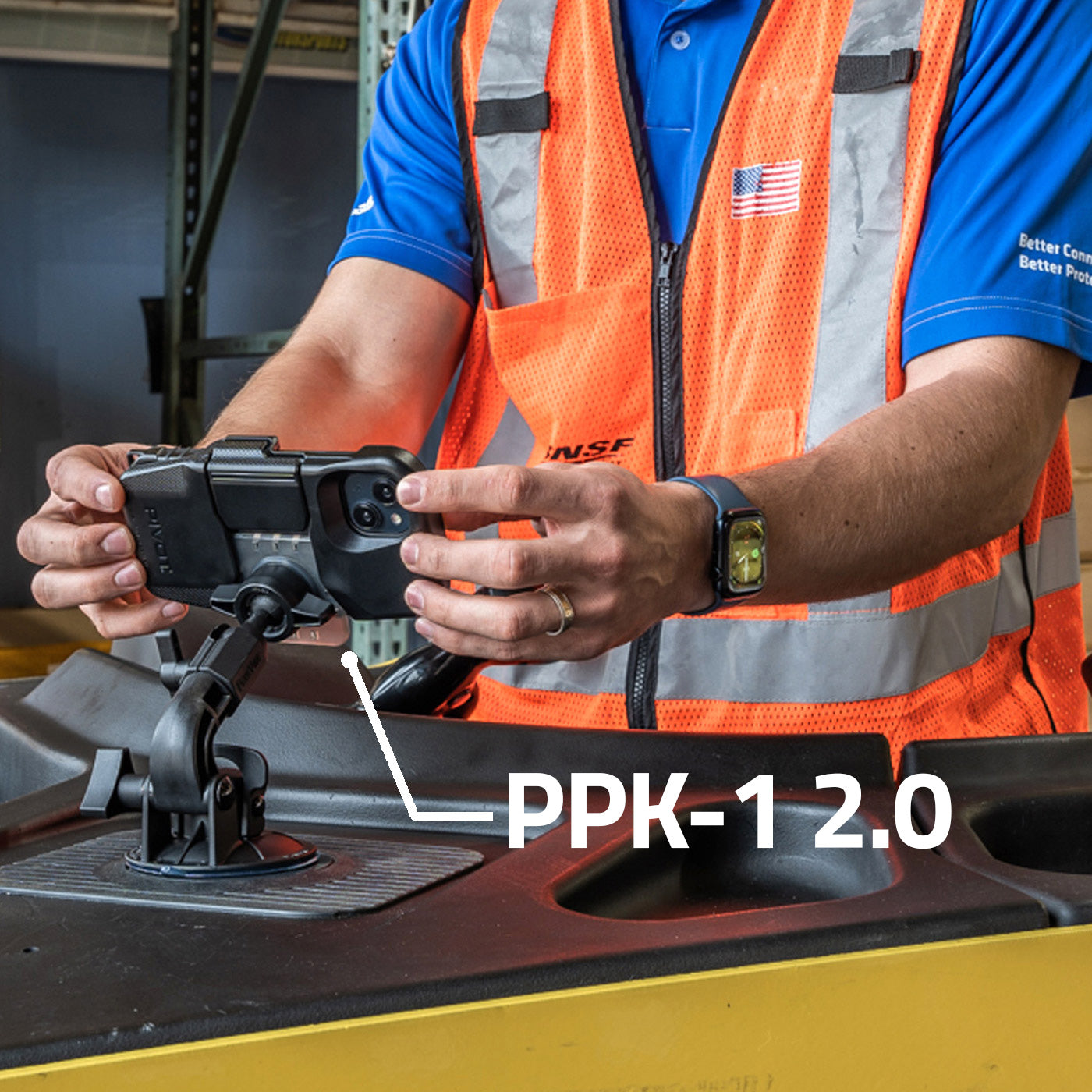

Suction Cup Mount with PPK-1 2.0 Mounting Plate

• Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, desktop, or other non-porous surface
• PanaVise Locking Suction Cup: Nearly unbreakable grip thanks to the mechanically activated dual-mode suction cup
• PIVOT "Click!" Connection: Quickly and securely attaches to any PIVOT case
• FAA Approved: Tested and approved by the FAA for use in-flight. This exact mount is currently in widespread use throughout the airline industry and military aviation

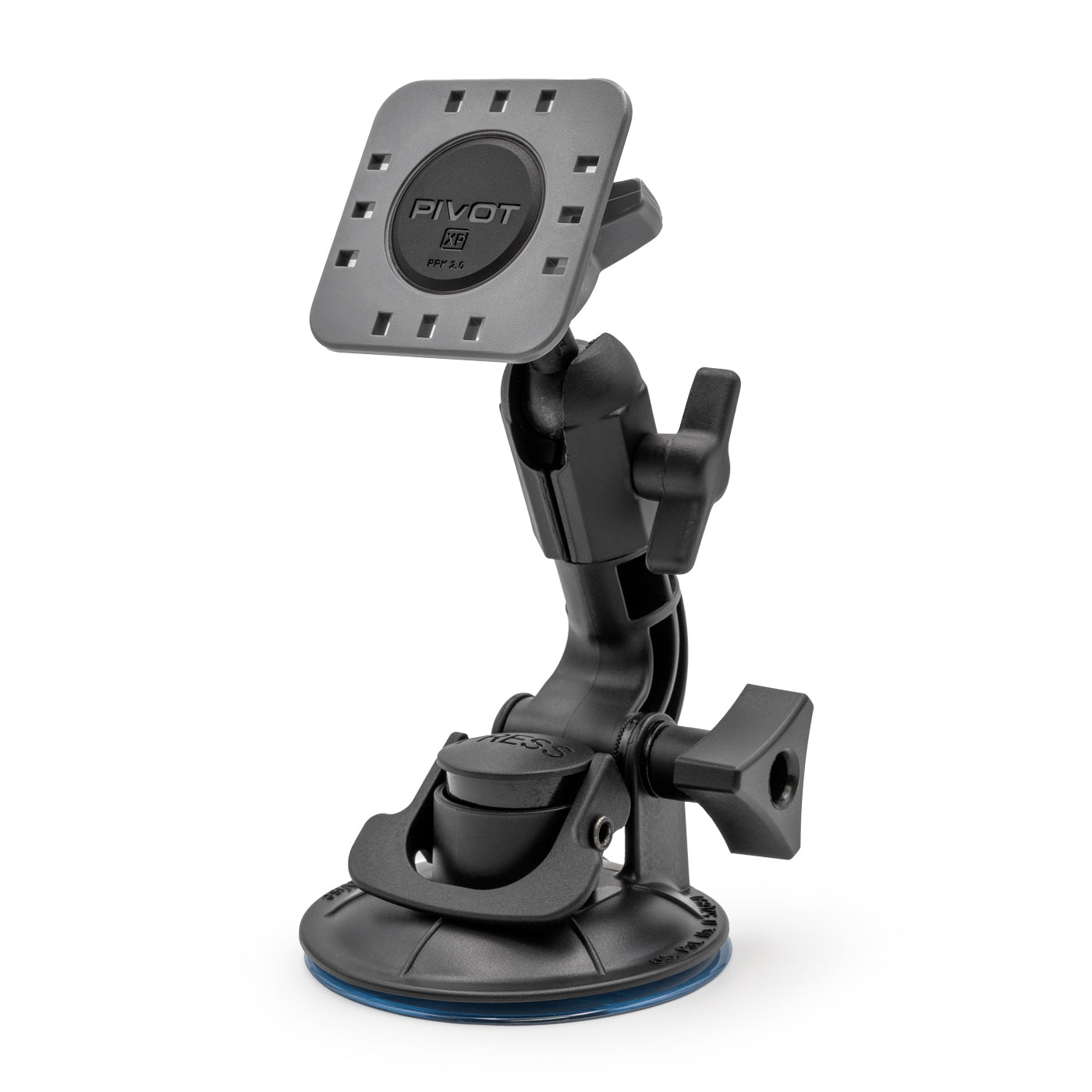

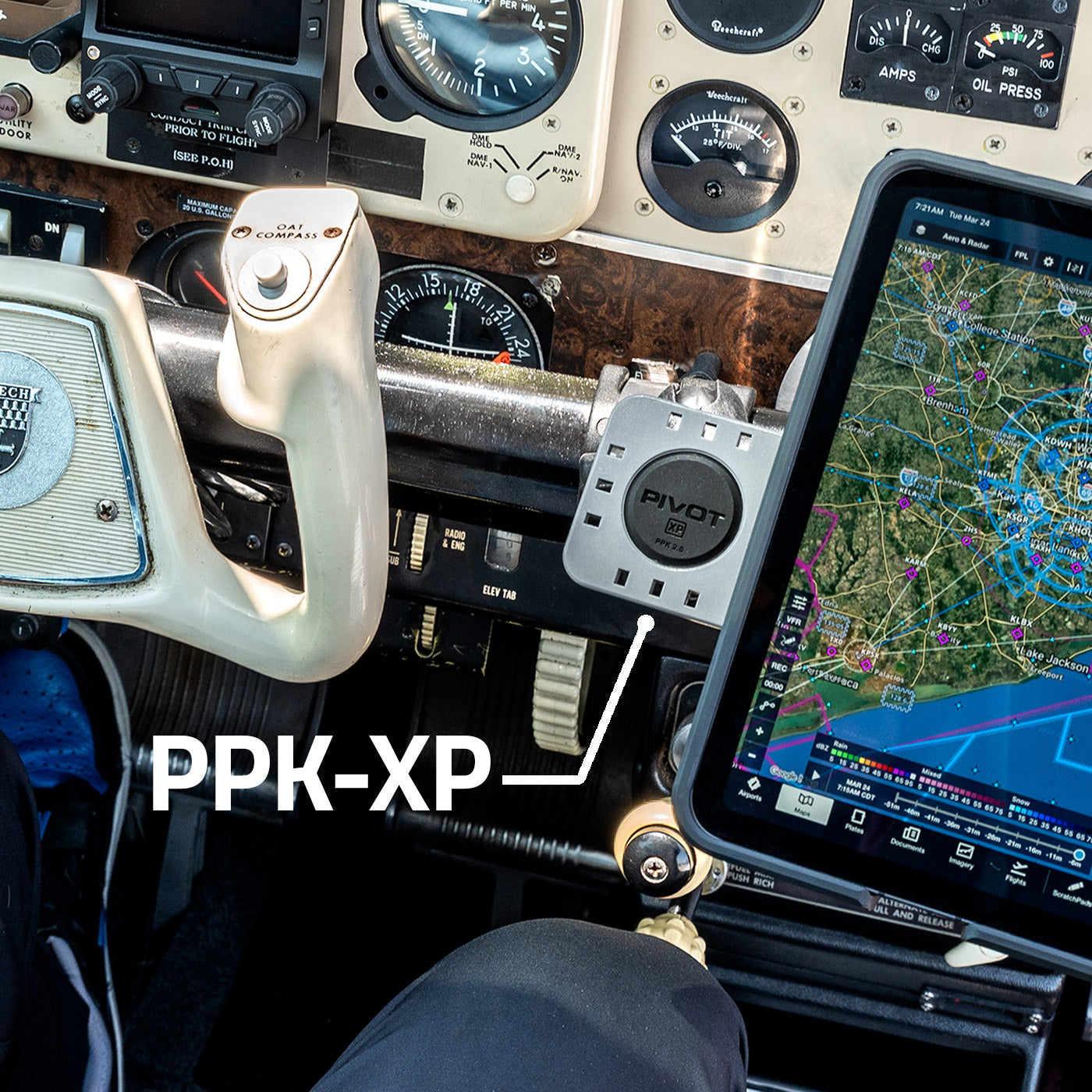

Suction Cup Mount with PPK-XP Mounting Plate

• Durable: Enhanced performance from a proprietary blend of high impact-resistant glass fiber-filled polycarbonate material for increased strength
• Resistant: Highly temperature and UV-resistant, withstanding prolonged exposure and use in extreme environmental conditions with reduced thermal aging
• FAA Flammability Compliant: Meets 14 CFR Part 23.853 horizontal burn test requirements
• Warranty: Lifetime warranty for long-term reliability and peace of mind
• Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, desktop, or other non-porous surface
• PanaVise Locking Suction Cup: Nearly unbreakable grip thanks to the mechanically activated dual-mode suction cup
• PIVOT "Click!" Connection: Quickly and securely attaches to any PIVOT case
• FAA Approved: Tested and approved by the FAA for use in-flight. This exact mount is currently in widespread use throughout the airline industry and military aviation

(The PIVOT Double Suction Cup Mount is recommended for helicopter applications)

Dimensions
Suction Cup Diameter: 3.25 in (82.55 mm)
Height (Extended Vertically): 6.25 in (158.75 mm)

Materials
PPK-1 Mounting Plate: Impact-Resistant Polycarbonate, TPU Rubber
PIVOT Dogbone Adapter: Impact-Resistant Polycarbonate
PanaVise Curved Arm: Stainless Steel, Impact-Resistant Polycarbonate
Base: Impact-Resistant Polycarbonate
Suction Cup: Aviation-Grade Polypropylene

Weight
0.60 lbs (0.27 kg)

For all PIVOT cases, past, present, and future

Installation and Removal Manual
Quick Intro Video

Contact us for more information.
