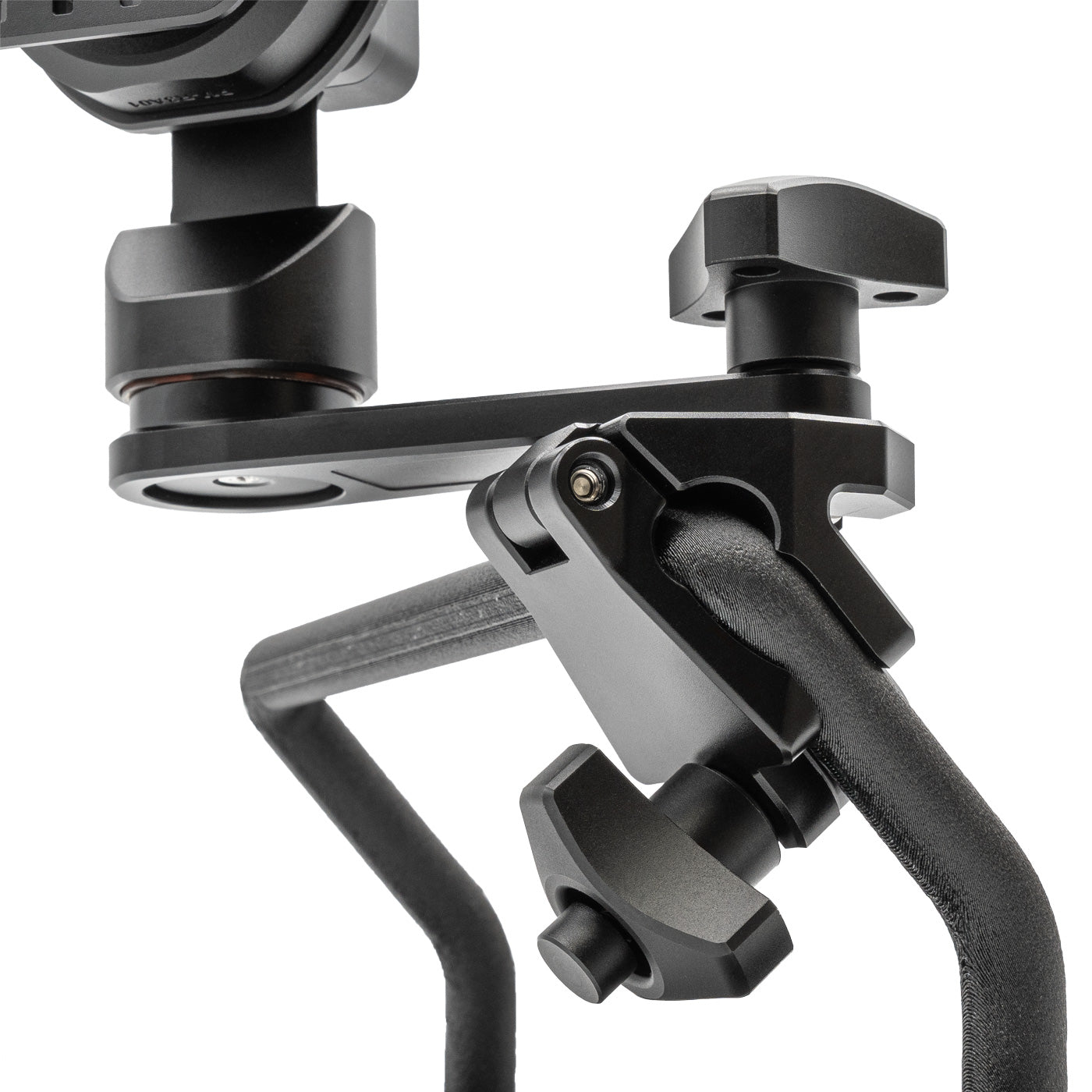

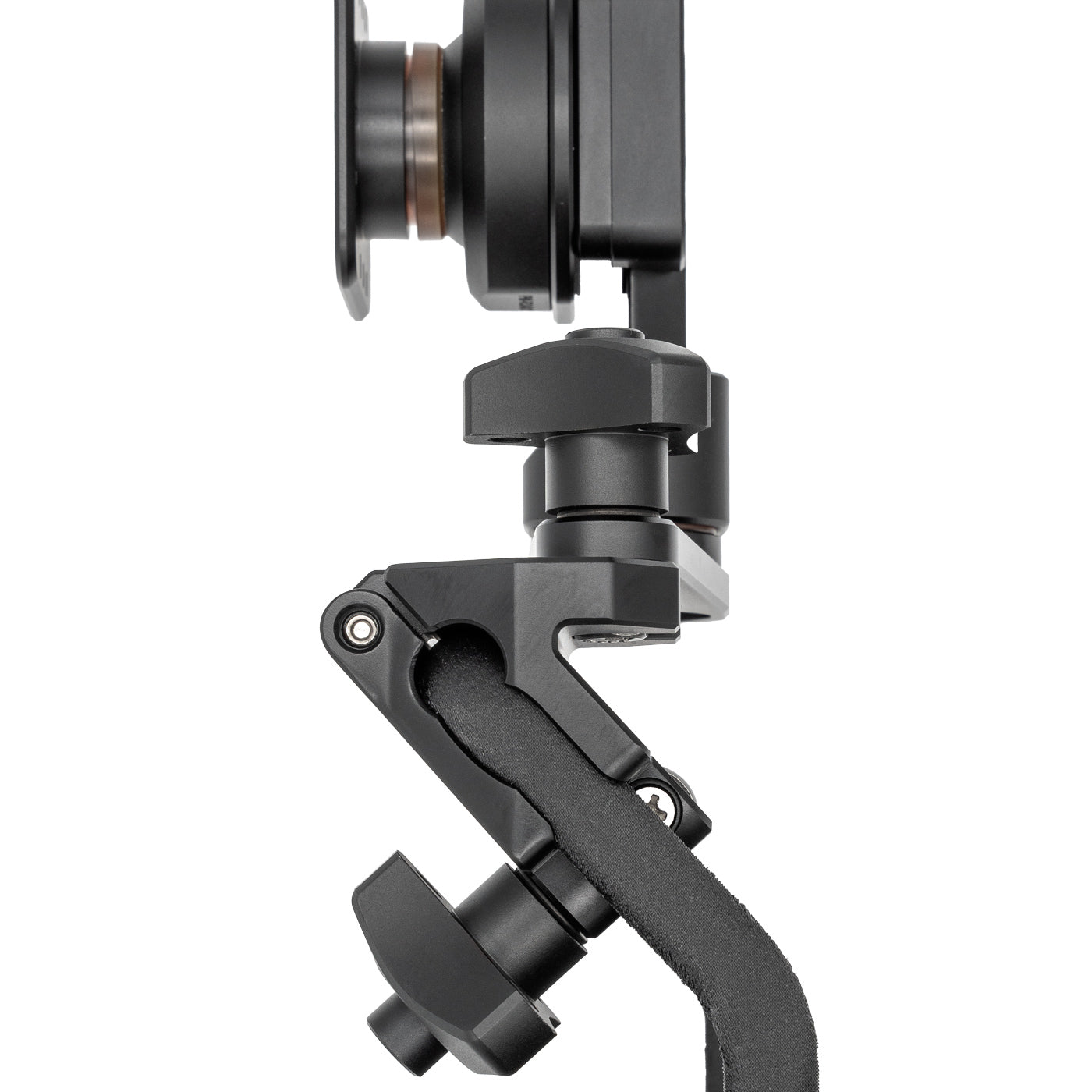

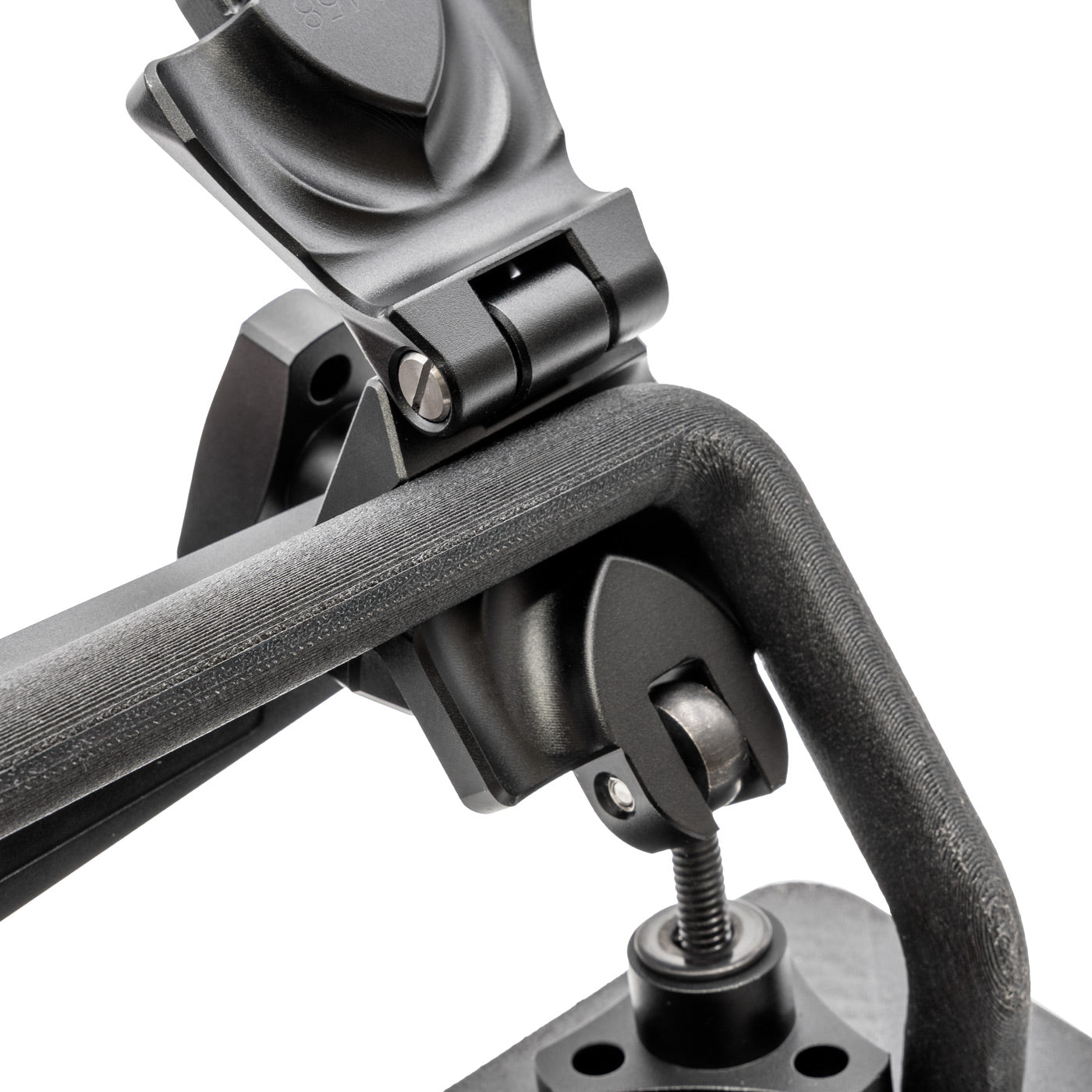

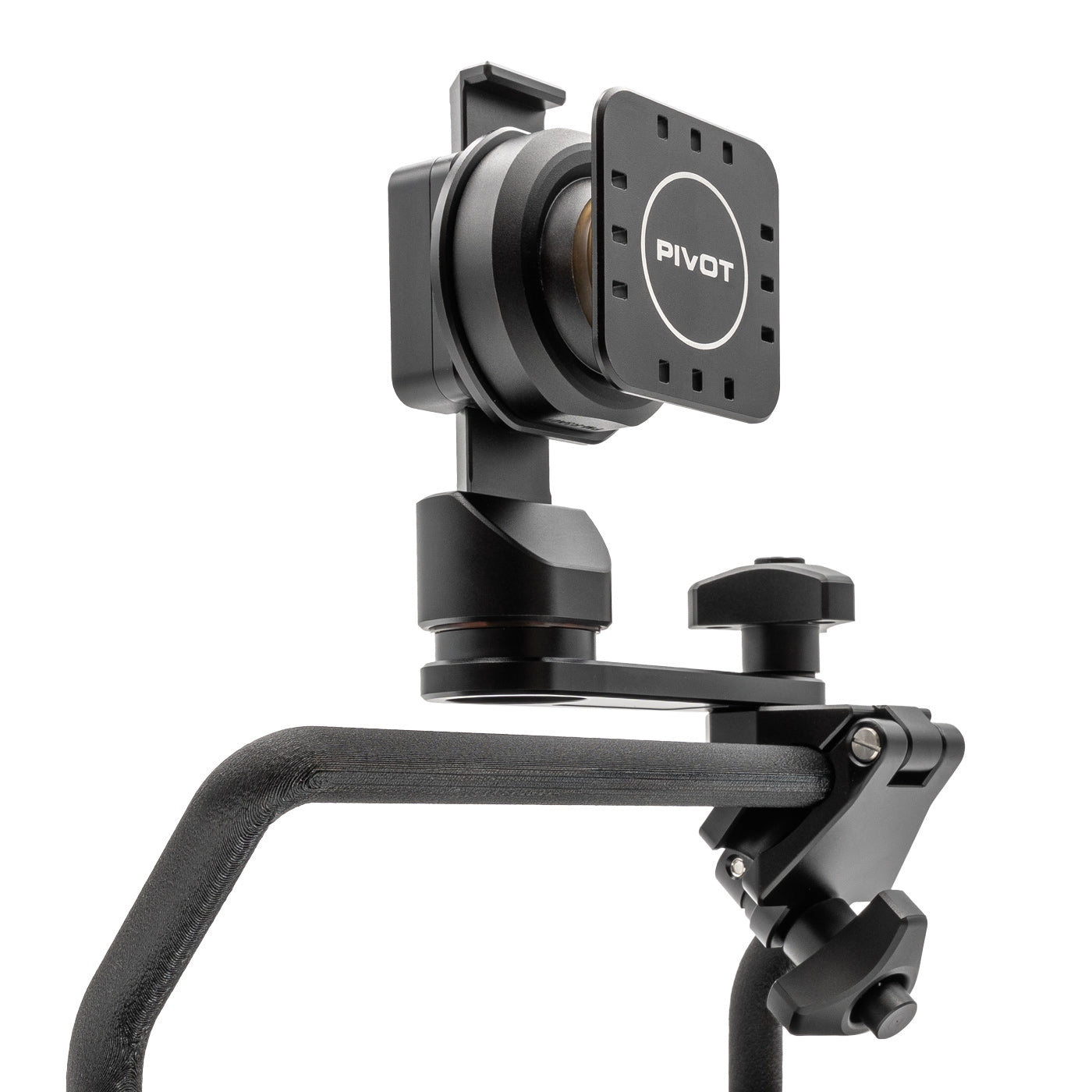

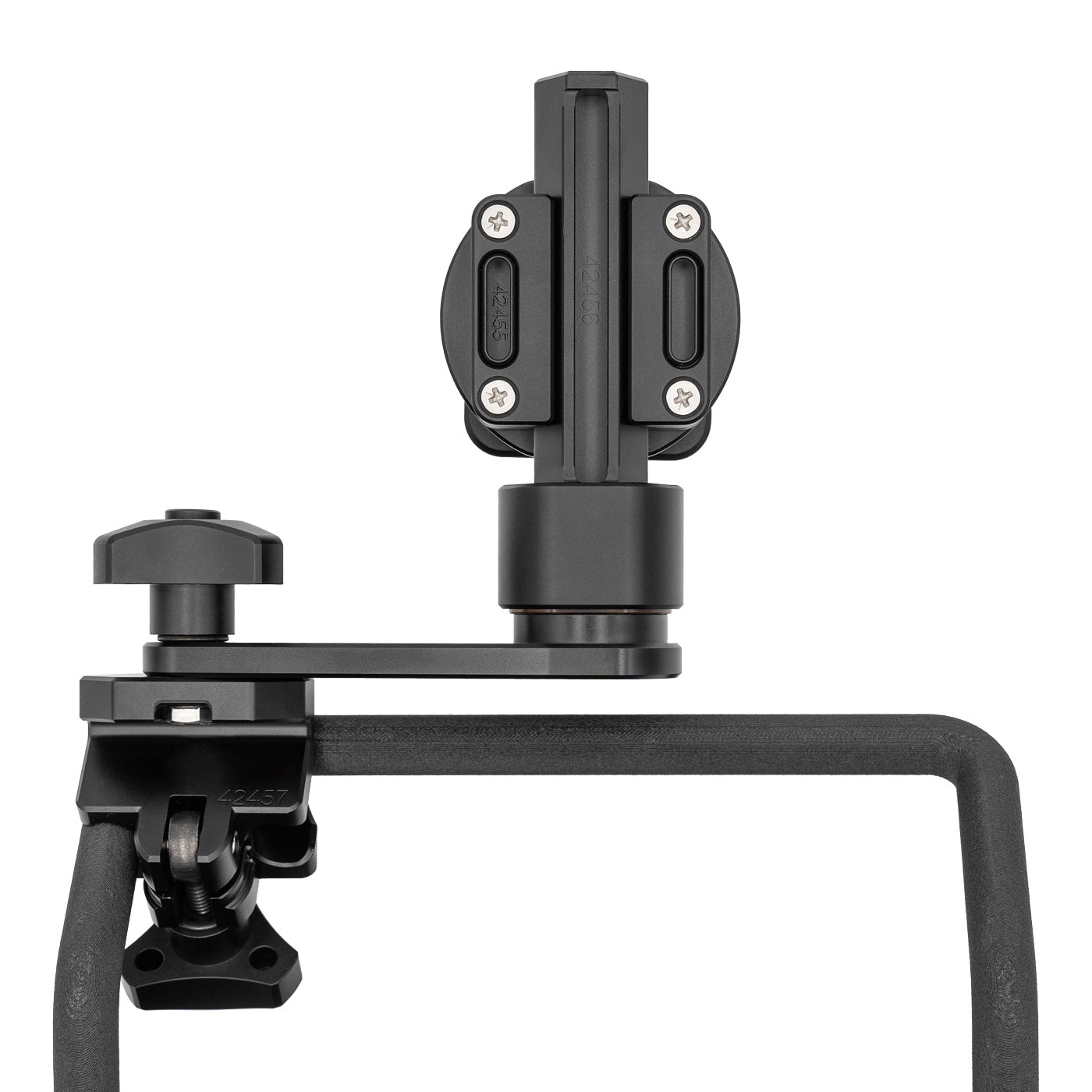

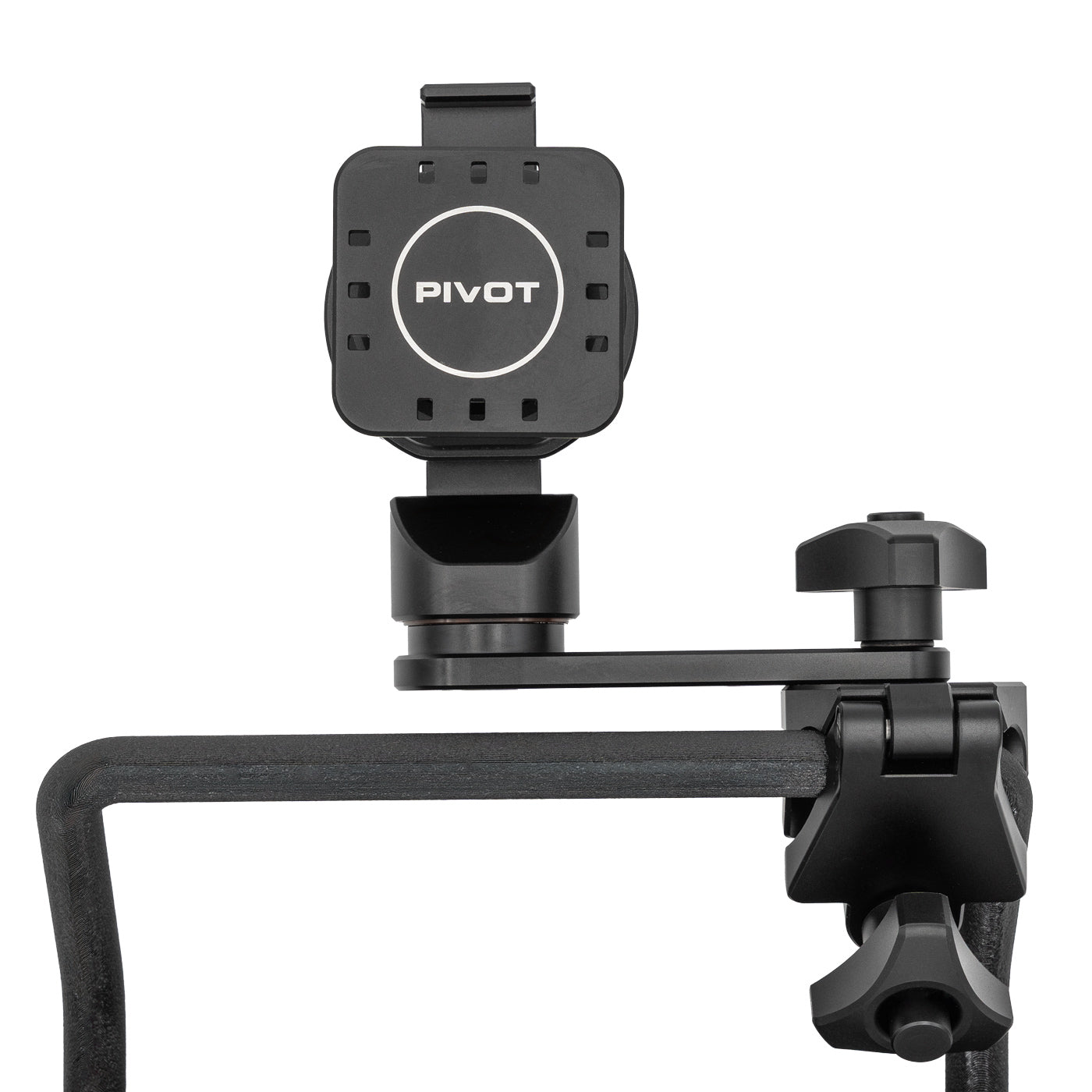

F-16 LTRM

The PIVOT F-16 LTRM was specifically designed for all F-16 Models (A/B & C/D). It is universal to either side of the aircraft (Starboard Side and Port Side), designed for use with smaller-class PIVOT cases, which can be used in both landscape and portrait orientations without interference with the aircraft’s critical instruments and warning lights.

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here.

• Complete Mounting Solution: Includes all hardware necessary to securely mount onto F-16 aircraft.
• PIVOT "Click!" Connection: Quickly and securely attaches to any mini PIVOT case.
• Full Adjustability: 360° rotation with 15° angle adjustment in all directions for optimal visibility.
• Vertical Slide Arm: Raises and lowers to position the device in portrait or landscape orientation, enabling clear viewing from either side of the aircraft.
• Clamp Base: Hinged design attaches securely to towel bar handle corners and fits all aircraft generations/variants
• Precision Control: Adjustment knobs on the towel bar clamp and horizontal arm for Port or Starboard side installation
• FOD-Resistant Design: Closed-threaded standoffs help prevent foreign object debris.
• Functional: High-tolerance friction bearings for reduced wear.
• Durable Construction: High quality aluminum alloy, CNC machined, anodized matte black.

Dimensions
5.82 in (L) x 2.79 in (W) x 8.48 in (H)

Weight
1.45 lbs (0.66 kg)

Materials
Mounting Plate & Base: Aircraft-grade aluminum alloy, CNC machined, anodized matte black

For Lockheed Martin F-16 (Models A/B and C/D)

Data Sheet
Installation and Removal Manual
Contact us if more information is required.
