Articulating Claw Mount

Based on the popular PIVOT Claw Mount, the PIVOT Articulating Claw Mount features a double socket swivel and ratchet arm with 360-degree center rotation and a 180-degree swivel joint. This allows greater flexibility in adjustment and device positioning. Thanks to the incredible clamping power from the Tough-Claw Clamp, the PIVOT Articulating Claw Mount will not lose its grip, ensuring that your device remains exactly where you mounted it. The clamp is available in two sizes: The small clamp works on round, square, and odd-shaped rails and bars ranging from 0.625” to 1.5” in diameter, and flat surfaces ranging from 0” to 1.14” in thickness. It is also available with an extended arm for applications that require a little more reach. The medium clamp works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness. High strength composite and stainless-steel hardware ensures durability and reliability in the most demanding environments. Ideal for applications where space is at a premium.

Caution: Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke.

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here.

• Double Socket Swivel and Ratchet Arm: Featuring 360-degree center rotation and a 180-degree swivel joint
• Tough-Claw Clamp: The small claw is designed to clamp to round, square, and odd-shaped rails and bars ranging from 0.625” to 1.5” in diameter, and flat surfaces ranging from 0” to 1.14” in thickness. The medium claw works on round, square, and odd-shaped rails and bars ranging from 1” to 1.875” in diameter, and flat surfaces ranging from 0” to 1.6” in thickness
• Durable: High strength composite and stainless-steel hardware for durability and reliability in the most demanding environments. Ideal for applications where space is at a premium
• Complete Mounting Solution: Includes all hardware necessary to mount a PIVOT case in virtually any aircraft, vehicle, or other location where the clamp can be attached
• PIVOT "Click!" Connection: Quickly and securely attaches to any PIVOT case

(Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke)

Dimensions

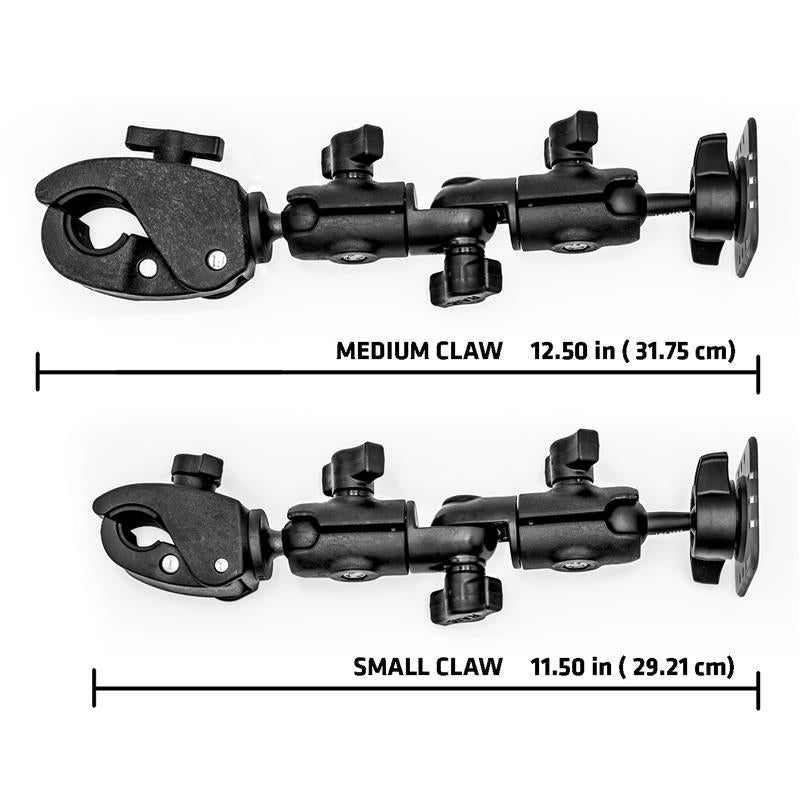

Overall Length:
Small Claw Mount: 11.50-in (29.21 cm),
Medium Claw Mount - 12.5-in (31.75 cm)

Weight
Small Claw Mount: 12.8 oz (362.9 g)
Medium Claw Mount: 17.6 oz (499.0 g)

Weight Capacity
2.0 lbs

Clamp Range
Round/cylindrical surfaces:
Small Claw: 0.625" - 1.5" outer diameter, Flat Surfaces: 0.00" - 1.14" in thickness
Medium Claw: 1” to 1.875” in outer diameter, Flat Surfaces: 0” - 1.6” in thickness

Materials
Tough-Claw: High-strength Composite Polycarbonate
Double Socket Swivel & Ratchet Arm: High-strength Composite Polycarbonate
Double-Ball Adapter: Marine-grade Aluminum

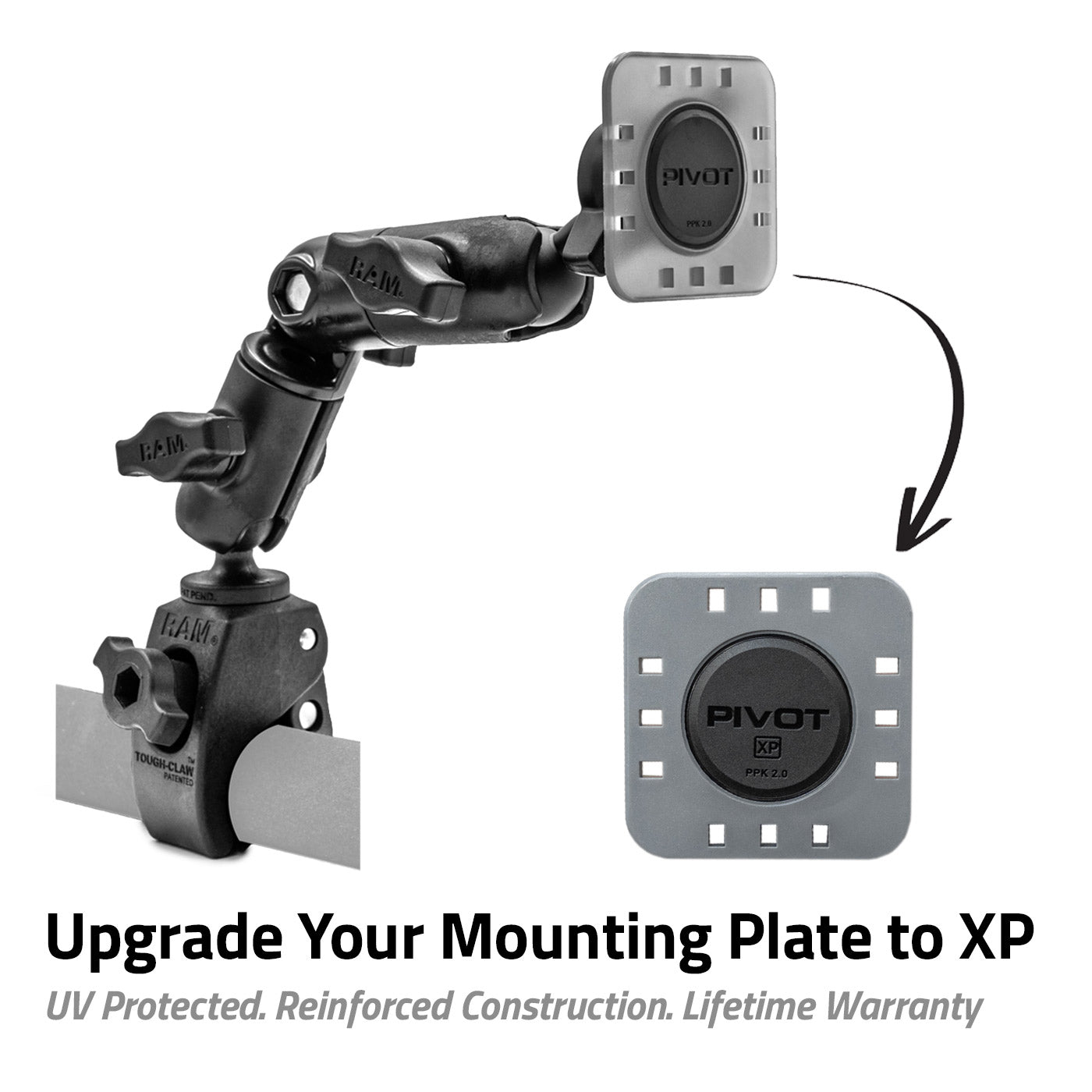

PIVOT PPK Mounting Plate: High-strength Polycarbonate

Aircraft Compatibility:
Small Claw
Cessna
Piper*
Mooney

Medium Claw
Beechcraft
Piper*

*Some older Piper models use thicker yoke rods and require the Medium Claw. If you are unsure which size Claw is most appropriate for your application, please measure yoke rod before ordering.

For All PIVOT EFB cases, past, present, and future
