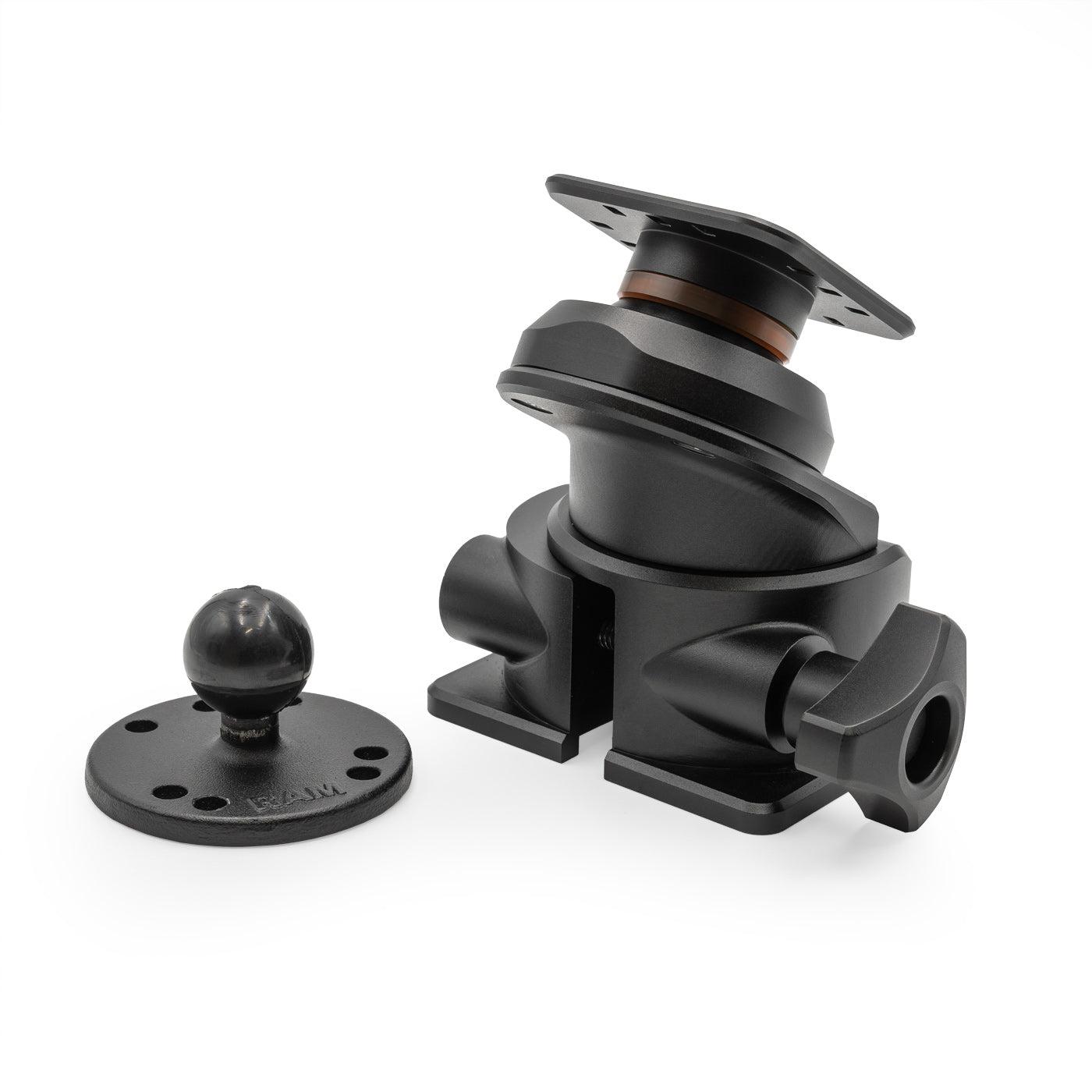

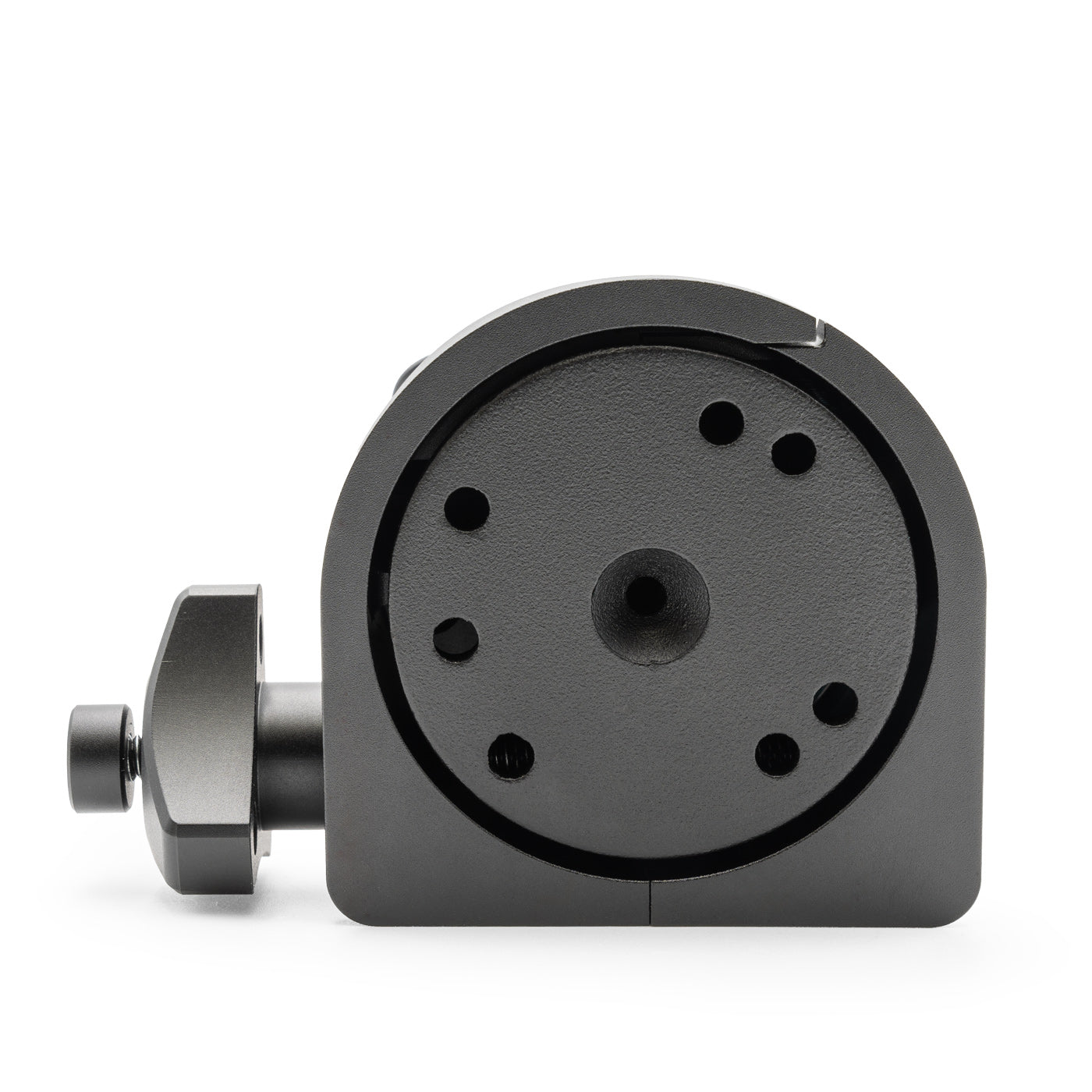

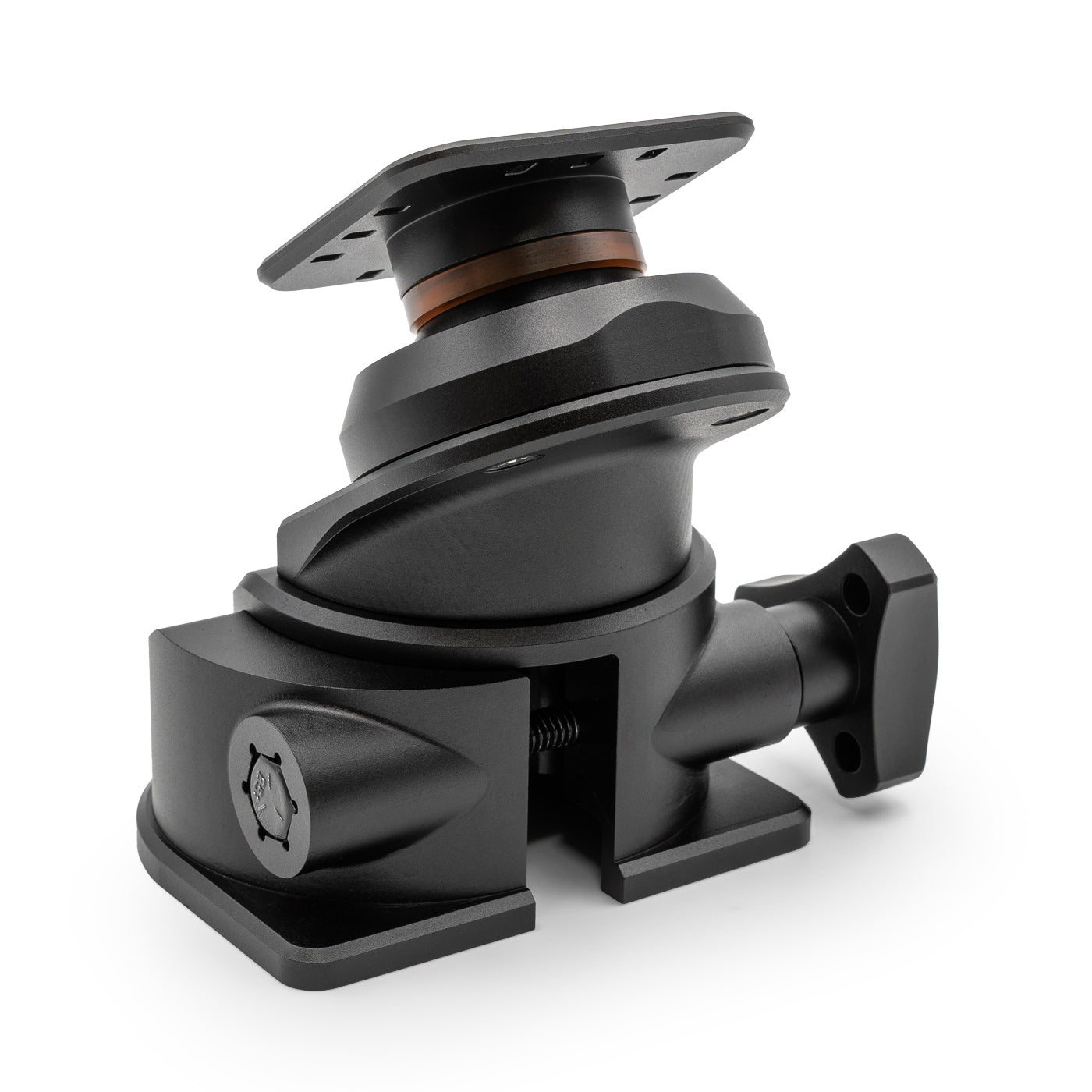

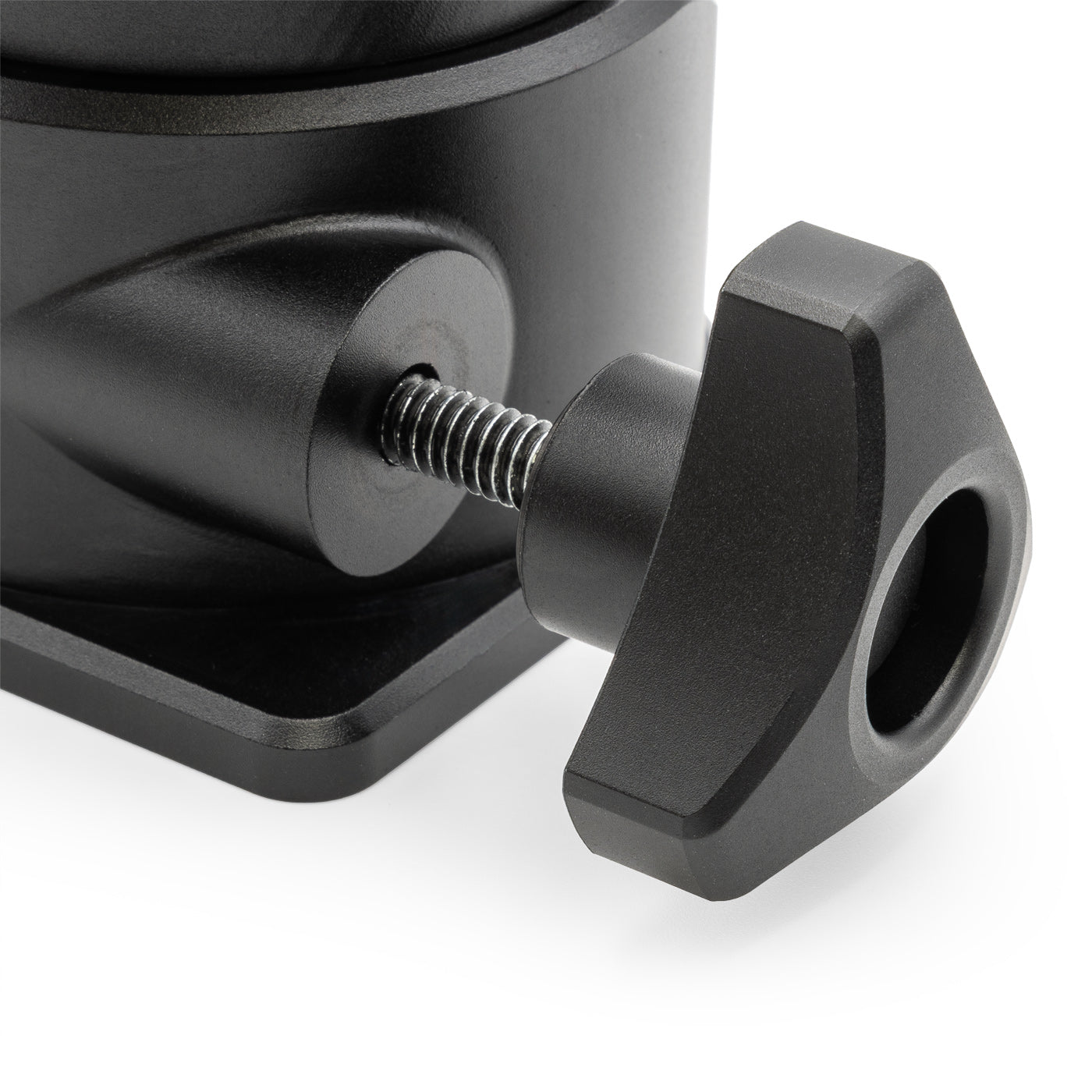

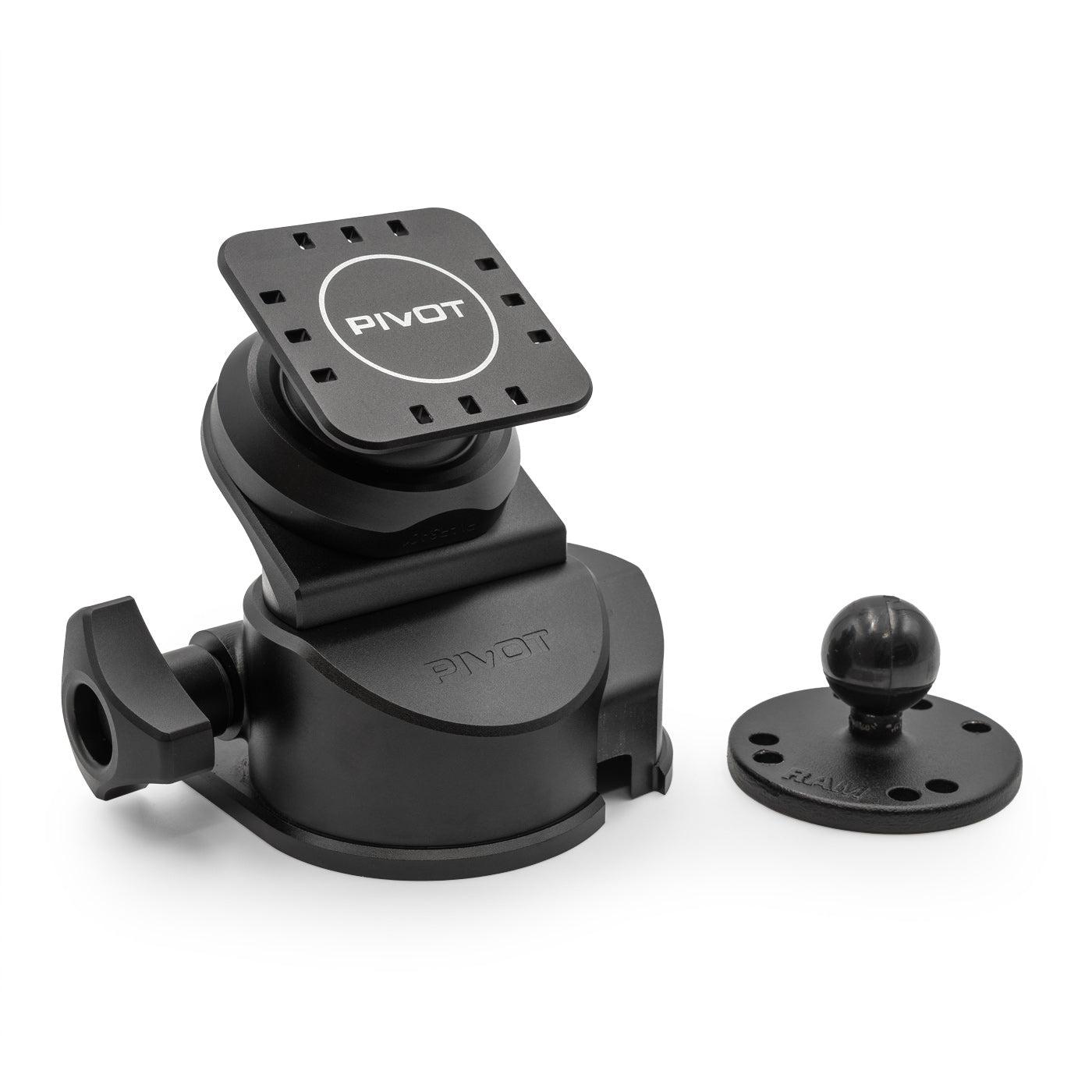

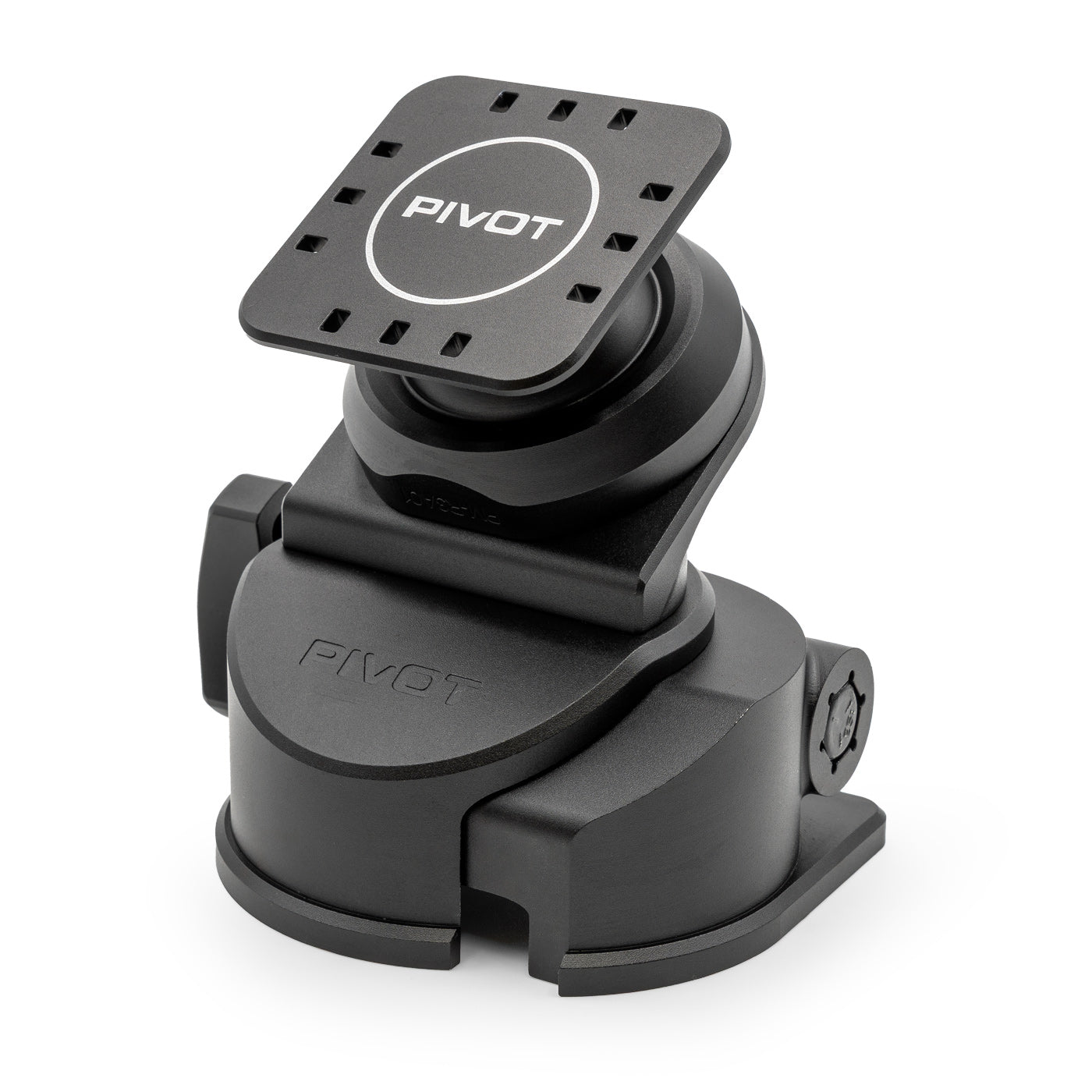

Ram Adapter LTRM™ System

The PIVOT RAM Adapter Long Term Removable Mount (LTRM™) system is a removable mount that is designed specifically to attach over 2.5" round plate RAM bases with a 1-inch (25mm) ball and can be installed in the flight-deck indefinitely without additional regulatory certification. It ensures Electronic Flight Bags (EFBs) are secure and viewable to the pilots through all phases of flight and preflight operations, while preserving safety of flight by preventing the EFB from becoming a loose and potentially hazardous object in the flight deck. Fully compliant with FAA and EASA standards for airline EFB operations.

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here.

• Complete Mounting Solution: Includes all hardware necessary to securely attach over 2.5" round plate RAM bases with a 1inch (25mm) ball

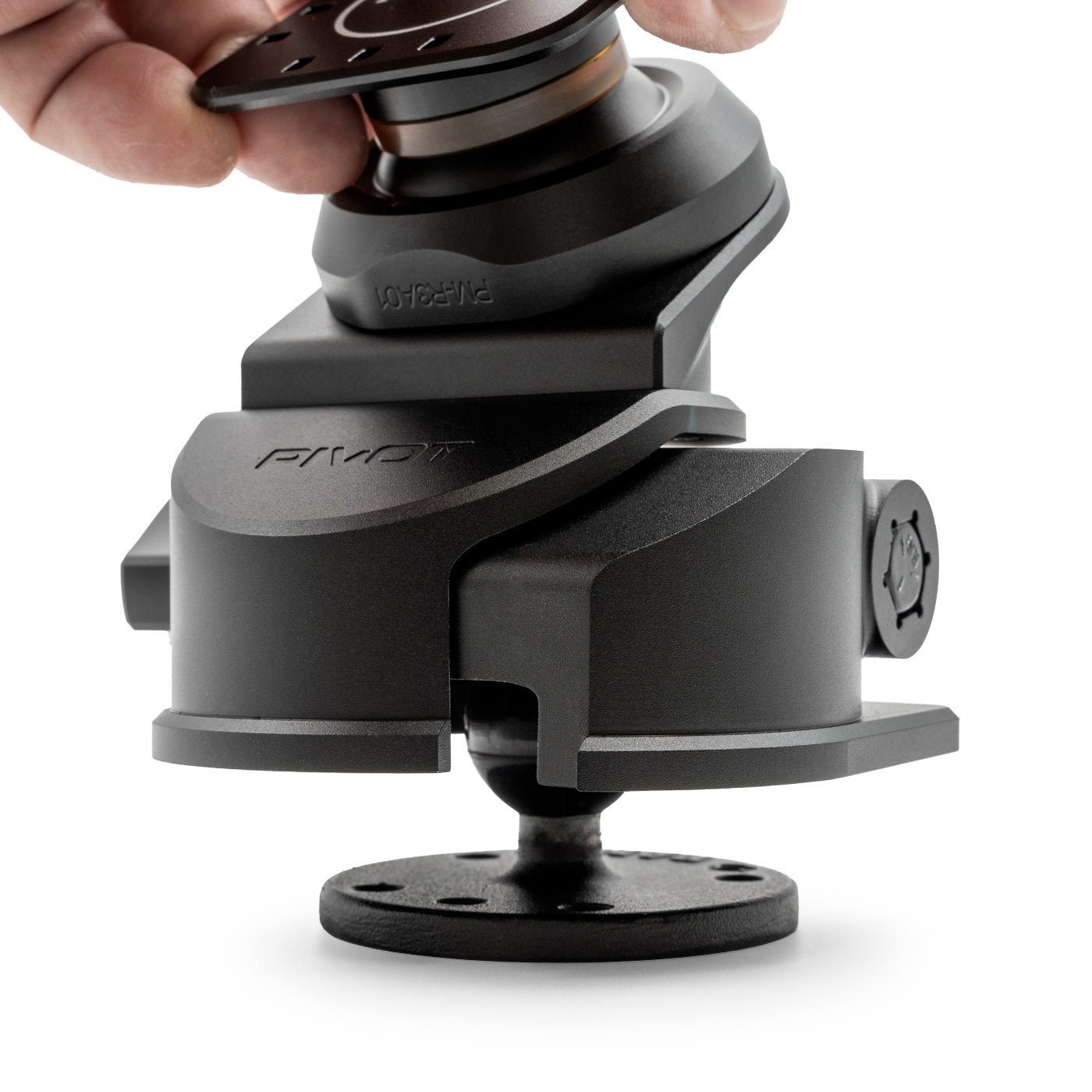

• PIVOT "Click!" Connection: Quickly and securely attaches to any PIVOT case
• Adjustable: Full 360° rotation, 15° angle adjustability in all directions
• Functional: High-tolerance friction bearings for reduced wear
• Durable: High quality aluminum alloy, CNC machined, anodized matte black
• FAA/EASA Compliant: Meets and exceeds all FAA and EASA standards for Class 1/Portable EFB Operations

Weight
1.20 lbs (0.54 kg)

Dimensions
Length: 4.37 in (111.00 mm)
Width: 3.56 in (90.42 mm)
Height: 4.45 in (113.03 mm)

Materials
Aircraft-grade aluminum alloy, CNC machined, anodized matte black and grey

Compatible with 2.5" round plate RAM bases with a 1-inch (25mm) ball

Data Sheet
Installation and Removal Manual

Contact us if more information is needed.
