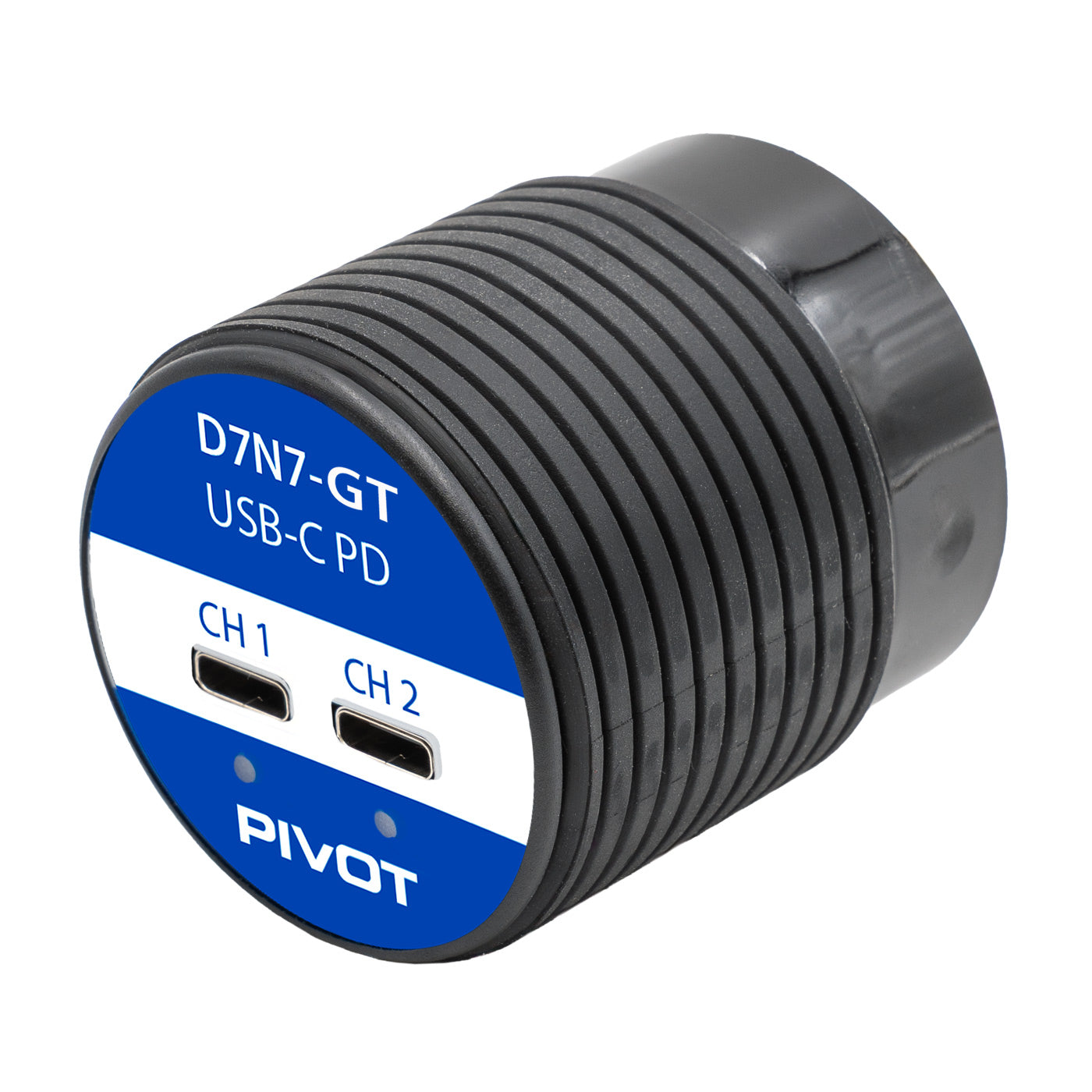

POWER Module for ML-3R (USB-C) - D-Series

Keep your Electronic Flight Bag (EFB) powered throughout every flight with the PIVOT POWER Flight Deck USB Charger. Designed specifically for aviation, this portable power module provides reliable, high-speed USB-C Power Delivery charging directly from compatible aircraft power receptacles without requiring aircraft modifications.

Featuring dual 22W USB-C Power Delivery ports, it powers two devices simultaneously while built-in bus surge suppression and independent over-current monitoring help protect both your connected devices and the aircraft's electrical system.

Unlike chargers that rely on 115VAC/400Hz outlets, PIVOT POWER Flight Deck USB Charger draws power directly from the aircraft's 28VDC bus, reducing electromagnetic interference (EMI) while supporting compliance with DO-160, Section 21, Category H requirements for flight deck use.

Built with a rugged rubber and polycarbonate housing, the PIVOT POWER Flight Deck USB Charger is engineered to withstand the demands of commercial and military aviation. Compatible with ML-1 aircraft power receptacles, it delivers dependable USB-C power throughout every flight.

• Fast Charging: Dual USB-C Power Delivery ports
• High Output: 22W output per USB-C port
• Aircraft Compatibility: Compatible with ML-1 several aircraft power receptacles (see Tech Specs)
• Wide Operating Range: Operates on 24-36VDC aircraft power
• Surge Protection: Bus surge suppression protects connected devices
• Over-Current Protection: Independent over-current protection on each USB port
• Durable Construction: Rugged rubber and polycarbonate constructiom
• Easy Installation: No aircraft modifications required

Model:
PP-D7N7-GT

Aircraft Receptacle:
ML-3R Twist-lock polar plug with center key

Input Voltage:
24–36 VDC

Output:
2 × USB-C Power Delivery

Power Output:
22W per port

Construction:
Ruggedized rubber and polycarbonate body

Aircraft Receptacle
ML-3R Twist-lock polar plug with center key

Device Power Receptacle Interface
USB-C
