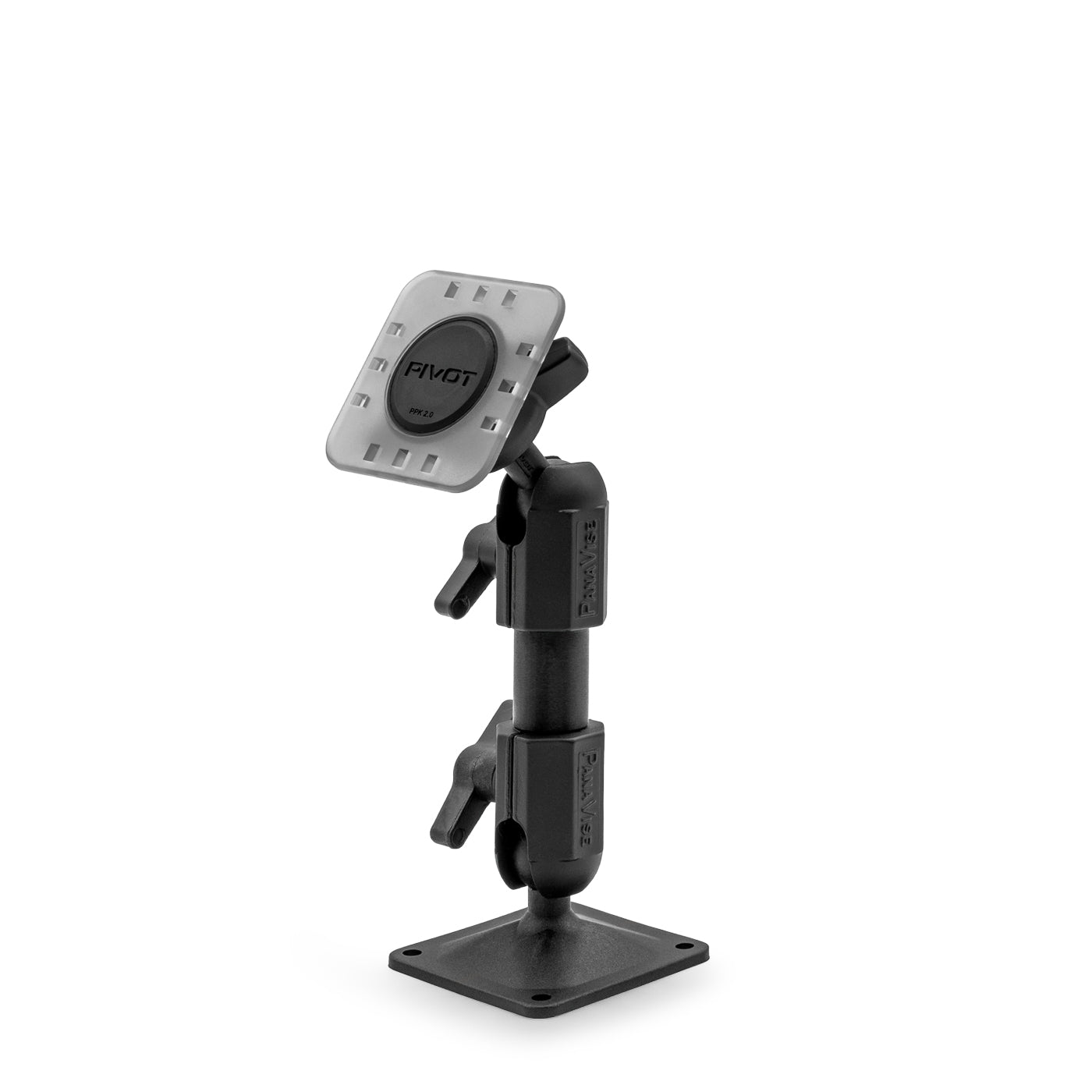

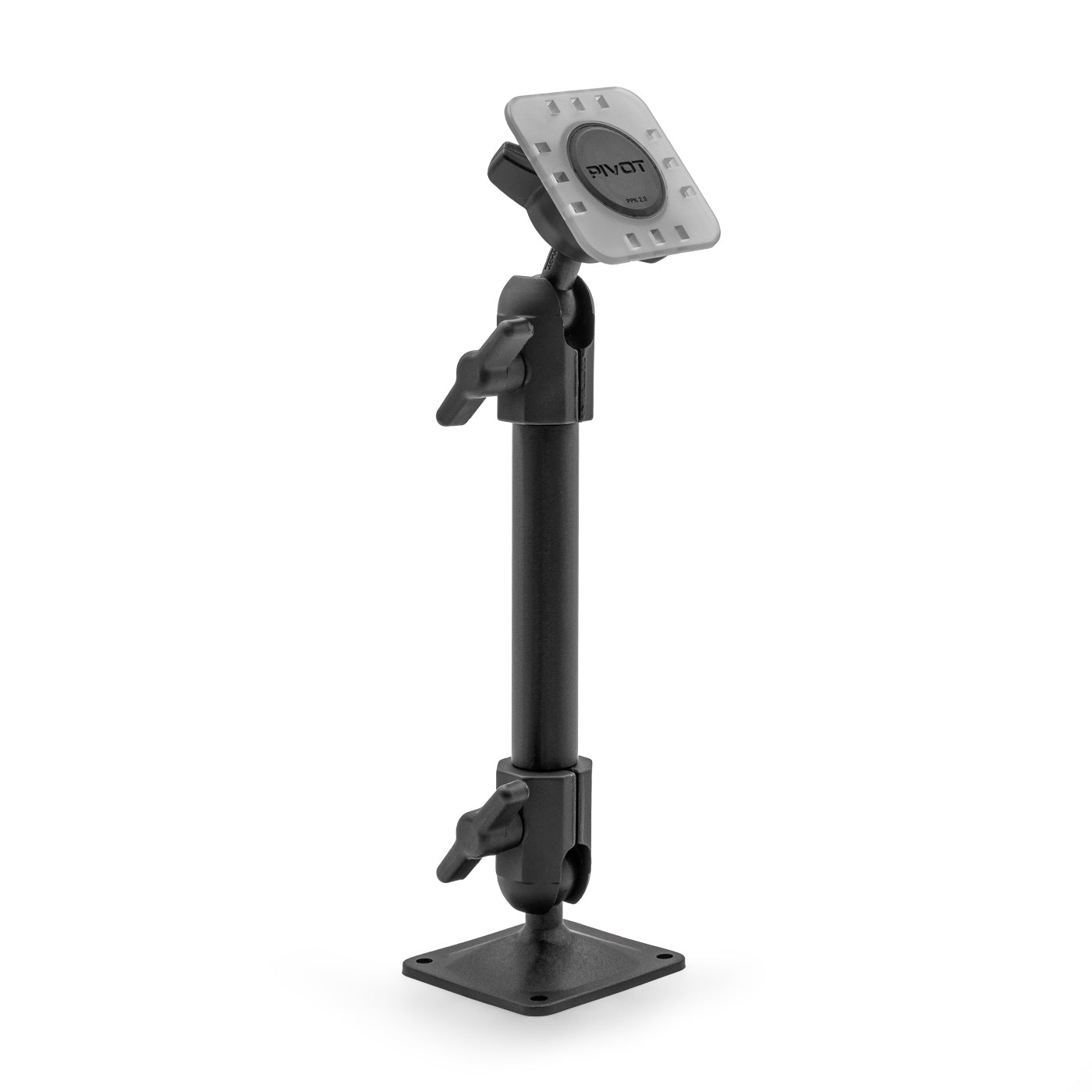

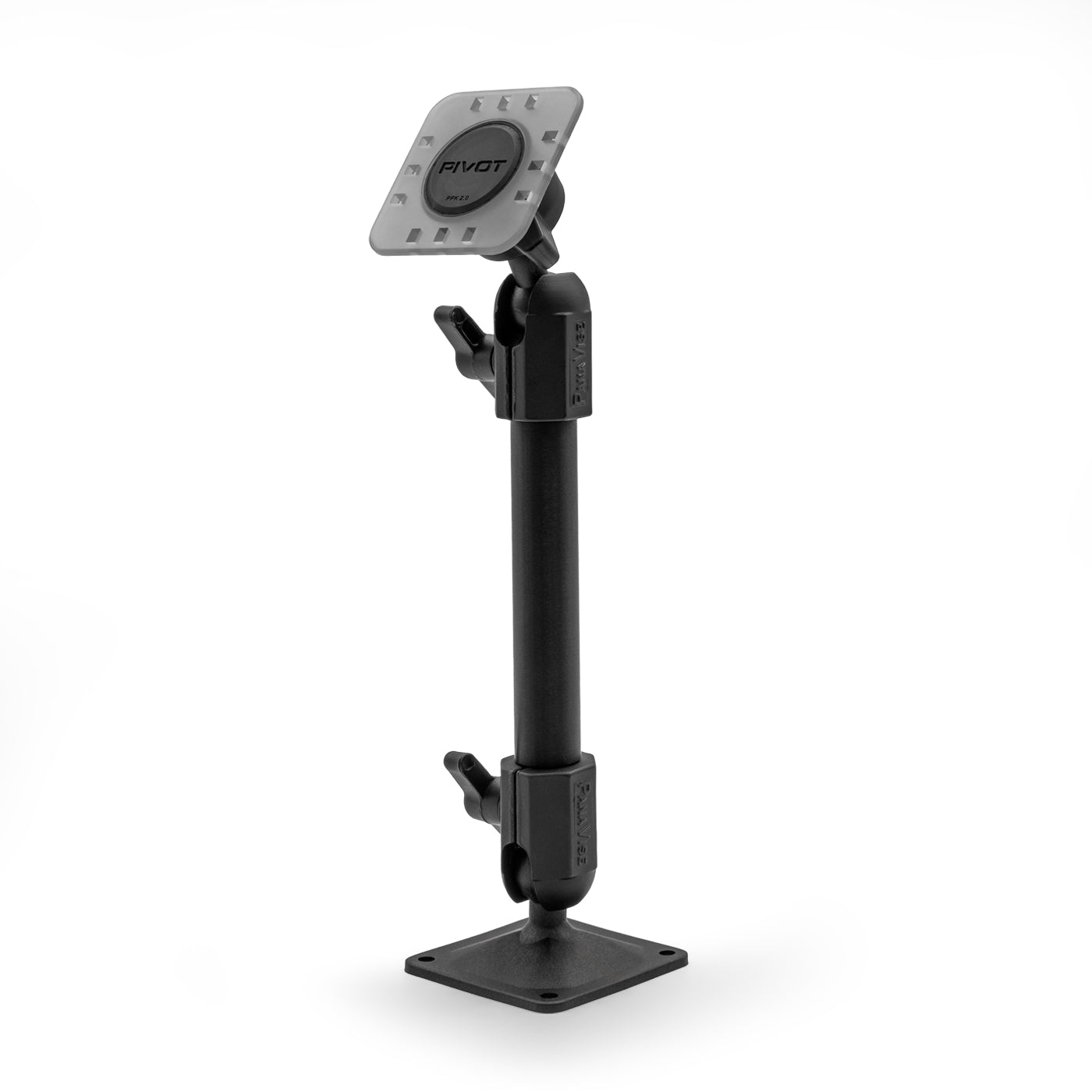

Slimline Hard Mount

The Slimline Hard Mount is ideal where a firm and permanent/semi-permanent installation is appropriate. Available in two sizes: 6-inch and 9-inch. To adapt for use with a PIVOT case, remove the AMPS plate and install the PPK-1 mounting plate.

Note: PPK-1 Mounting Plate is NOT included.

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here.

• Versatile: 210° Tilt, 360° Turn and 360° Rotation at both ends
• Durable: Heavy duty materials, including an aluminum alloy shaft, ensures years of worry-free use in the most demanding environments
• Housings at the head and foot incorporate a serrated contact design that increases gripping power at the adjusting points
• Rectangular AMPS pattern: 30mm x 38mm (1.181-in x 1.496-in) on AMPS plate

Dimensions
Foot: 2.5in x 2.5 in (63.5 mm x 63.5 mm)
Height (including shaft):

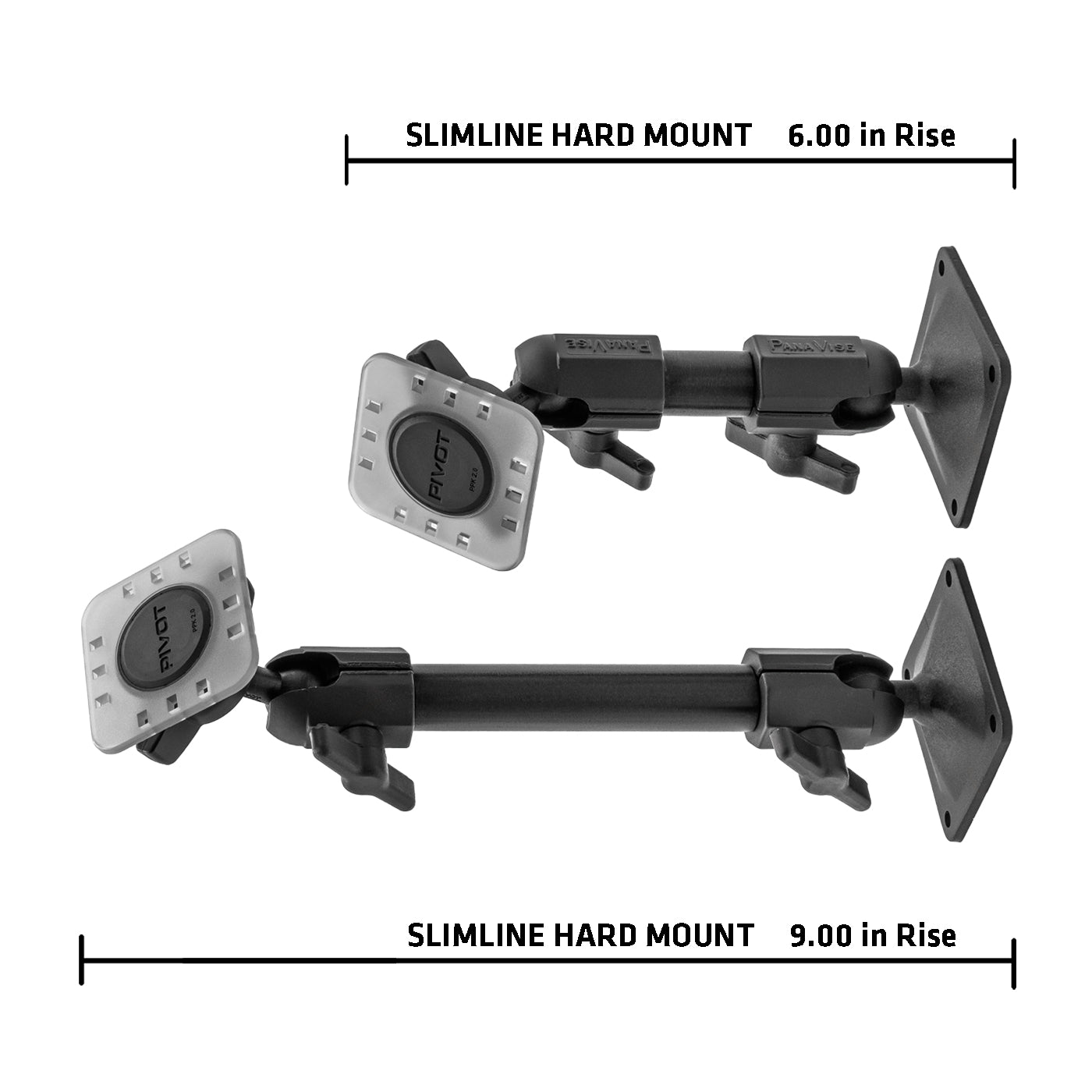

6 in (152.4 mm) OR 9 in (228.6 mm)

Materials
Shaft: Aluminum Alloy
Mounting Plate: Glass Fiber-reinforced Polycarbonate
Foot: Durable Glass Fiber-reinforced composite plasti

Devices utilizing standard AMPS plate, or any PIVOT case when the AMPS plate is replaced with the PPK-1 Mounting Plate.

No supporting documentation available. Contact us for more information.
