Universal Articulating Mount (Contoured Base)

The PIVOT Universal Articulating Mount is a durable low-profile permanent front mounting solution for almost any surface, with fixed tension to prevent sag. The shaped front mount plate is designed for mounting to any surface where PIVOT connectivity is needed. If installing in an aircraft environment, depending on under what rules the aircraft is operated (Part 121, 135, etc.), installation of this mount may require engineering and/or regulatory authority approval. Contact us for more details.

Note: Fasteners NOT included. See compatibility tab for compatible fasteners.

In a hurry? Expedite processing of your order with Queue Jumper. For a full explanation of our shipping policies, Click Here.

• Complete Mounting Solution: Just select the proper hardware for installation, then mount a PIVOT case to virtually any aircraft, vehicle, desktop, or surface.
• PIVOT Click-Connect: Quickly and securely attaches to any PIVOT case.
• Adjustable: Full 360° rotation and 15° angle adjustability in all directions.
• Functional: High-tolerance friction bearing for reduced wear.
• Durable: High quality aluminum alloy, CNC machined, anodized matte black for extra durability.

Weight
0.40 lbs (181.44 g)

Dimensions
Length: 2.54 in (64.44 mm)
Width: 2.54 in (64.44 mm)
Height: 1.52 in (38.71 mm)

Materials
Mounting Plate & Base: Aircraft-grade aluminum alloy, CNC machined, anodized matte black.

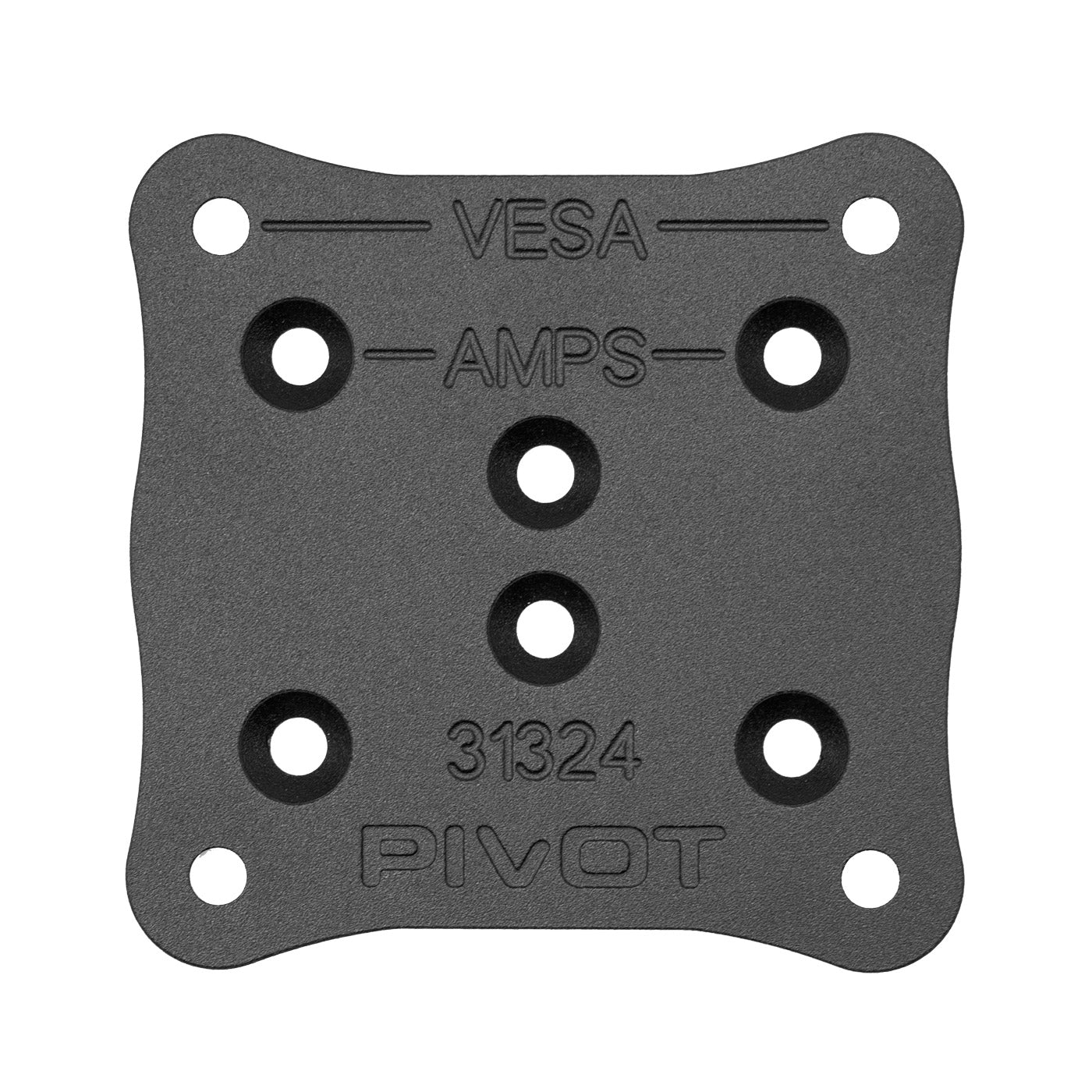

Shaped front mount plate (31324) containing 50mm VESA size hole pattern standard.

Surface mount holes are 8-32. Screw spec. and length variable by application. Some acceptable screw types are: MS-24693, MS-51959, MS-35910, MS-51957, MS-35206, or No. 6.

For all PIVOT cases, past, present, and future

No supporting documentation available. Contact us for more information.
